Design Patterns Assignment 3
Chris Dent and Haobo Yang
September 23, 2002

[ Part 1a ] [ Part 2 ] [ Part 3 ] [ Part 4 ]

Part 1a

This problem is the one we have implemented. Code is referenced below. The other problems also link to code but this one is the “official” sample. The other code was written to experiment with the designs.

Resources:

GoF

Fluency:

http://www.cs.indiana.edu/~rawlins/symphony/mvc2/mvc2-problem.html

KnownSpace Hydrogen API Design:

http://developer.knownspace.org/designdocs/api_design.jsp

Problem:

Write an EntertainmentConsole that can produce copies of a DVDPlayer, a CDPlayer, a VCRPlayer and a TapePlayer. Each of these supports starting, stopping, fast-forwarding and rewinding the media but each has a different look and feel.

Overview:

A solution to the problem is to use the AbstractFactory design pattern to create players that support the same set of operations but have their own implementations. Using an AbstractFactory makes it possible to create whatever sort of player is needed next from the same client code. It also makes it easy to extend the types of players the client is able to create.

We have also included the Mediator pattern to create a context within which the logic of the interactions between operations on the players is encapsulated. This can be done in a more flexible manner (as explained in the designs for the other problems as well as the Fluency and Hydrogen docs referenced) but a Mediator suffices for this situation.

The Mediator also provides a graphical container for the player.

Links:

Code

http://www.burningchrome.com/~cdent/649/ass3/part1/
Zipfile: http://www.burningchrome.com/~cdent/649/ass3/part1/part1.zip
Javadoc: http://www.burningchrome.com/~cdent/649/ass3/part1doc/index.html

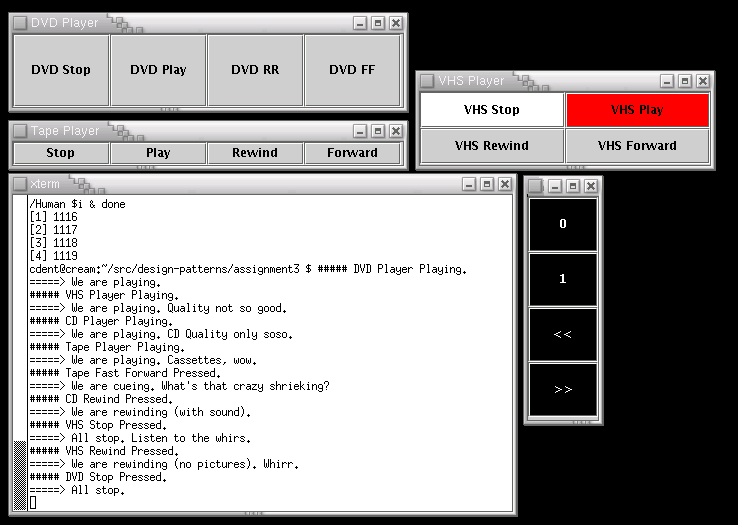

Screenshot: http://www.burningchrome.com/~cdent/649/ass3/part1screenshot.gif (~340Kb)
The Human class contains main().

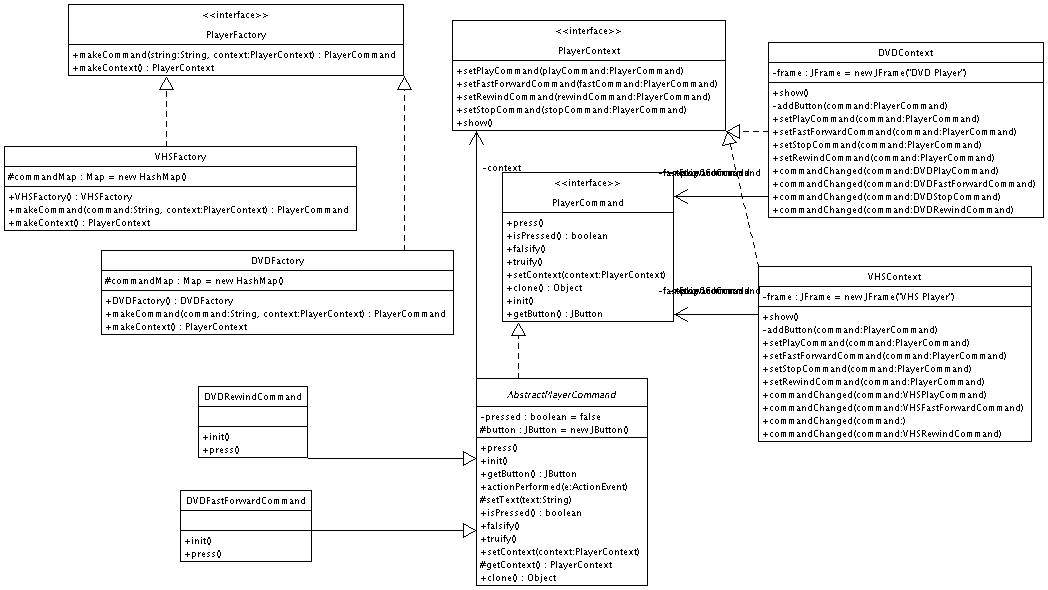

UML Diagram

http://www.burningchrome.com/~cdent/649/ass3/part1_classes.gif

Interfaces:

PlayerFactory

Provides the interface to create the PlayerCommands and PlayerContexts. This interface is implemented in the specific factories.
This is the AbstractFactory participant in the pattern (GoF, p. 89).
In this factory the products are a collection of Commands and the Mediator that allows them to be run. More details in the description of the concrete DVDPlayerFactory.

PlayerContext

A PlayerContext is the Mediator that manages interactions between the Player commands. It provides an interface for setting the known commands via setPlayCommand, setFastForwardCommand, setStopCommand and setRewindCommand methods. A concrete player context also must implement commandChanged() methods for each of the command objects it expects to hear from.
More details are in the description of the concrete DVDContext.

PlayerCommand

This is an interface to an operation on a Player. This is the Colleague participant of the Mediator pattern as well as the AbstractProduct in the AbstractFactory pattern.

Classes:

AbstractPlayerCommand

An abstract class implementing the PlayerCommand interface and the code shared between the PlayerCommands of the specific player types.
Every PlayerCommand must know its PlayerContext, the mediator, to notify it of changes in state. A reference is kept and the protected method getContext() allows subclasses to determine their own context.
To allow the PlayerFactory to easily add other PlayerCommands, classes implementing the PlayerFactory interface should keep a Map of operation names to PlayerCommand prototypes. To support this a PlayerCommand must be Cloneable, so AbstractPlayerCommand implements the Cloneable interface.
An AbstractPlayerCommand maintains its very simple state in a boolean. This state can be queried with isPressed() and changed with falsify() and truify(). A more extensible way to manage state is described in the design for Fluency (URL above).

DVDPlayCommand

This is a concrete example of a PlayerCommand. It differs from other commands of its type (DVD) by the action it implements (play). It differs from other play actions in the in which it implements that action and the look and feel of its visible display.
In this implementation it is assumed that the DVDContext will do the actual manipulation of the media; the commands are only interfaces to the manipulation. No media manipulation is provided here, but some friendly text is output to the screen.

DVDContext

This is the concrete implementation of PlayerContext. It mediates interaction between the client and the DVDPlayCommand and other DVD Commands. It has a reference to the commands (and the commands have a reference to it) so that actions on the commands can cause actions on other commands (through the mediator).
In addition to the methods for setting the various command references, there are versions of a commandChanged() method for each type of PlayerCommand that the Context can hear from.
This makes it possible to execute the logic of the player. Some examples:

when the DVDPlayCommand is press()ed, falsify() the state on the other commands and do the actual playing.
when the DVDRewindCommand is press()ed, query the state of the DVDPlayCommand to see if it currently isPressed(), and show pictures backwards at a fast rate if it is. Otherwise we should just go backwards a chapter.

The level of complexity present in this very small Mediator makes the case for Simpletons and event pools as described in the KnownSpace Hydrogen design docs. In that scenario a DVDStopCommand would have the smarts to know, amongst other things, to falsify() itself when it hears of a DVDRewindCommand getting pressed.

DVDFactory

A ConcreteFactory participant in the AbstractFactory pattern.
Knows how to create DVDContexts and DVD Commands but returns them as PlayerCommands and PlayerContexts so clients can create and use them without needing DVD specific code.
A concrete implementation of PlayerFactory such as DVDFactory, in addition to implementing makeCommand() and makeContext(), must have a Map containing prototypes of the PlayerCommands that will be used to make a DVDPlayer. These prototypes are accessible through the generic names of the operations the commands represent (e.g "play", "stop", "fastForward" and "rewind").
When a command is made with makeCommand() the prototype is cloned. The clone is told of the context that will mediate its actions. The command is returned to the client, ready for use.

Human

This is a test client for making players via the factories. A factory is created from the correct class. A context is made and commands are created. A different type of player can be selected by simply choosing a different factory class.

Part 2

Resources:

T Spaces: P. Wyckoff et. al, http://www.research.ibm.com/journal/sj/373/wyckoff.txt

Fluency: http://www.cs.indiana.edu/~rawlins/symphony/mvc2/mvc2-problem.html

Conversations of Chris Dent with Matt Liggett, Mary Clegg, Ailish Byrne and Nate Johnson

Problem:

Write a system of classes that performs as an extensible data storage system. Initially the system should understand no operations, but should allow the easy addition of arbitrary operations. The "database" can have any format. Some operations may be compositions of other operations.

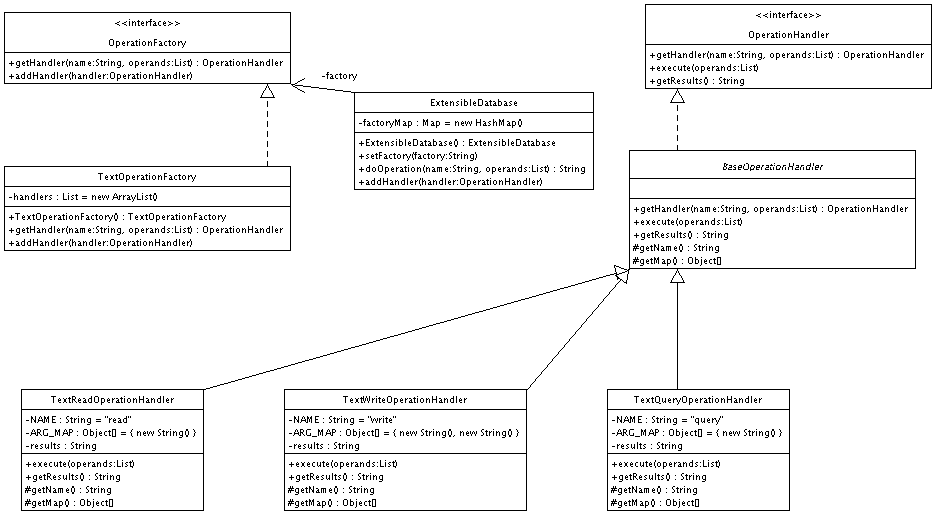

Overview:

The solution to this problem is suggested by T Space (described at the reference above). In that system arbitrary tuples of information may be used as queries, operations or data.

In this solution, an ExtensibleDatabase initially has only one operation, doOperation(), that takes a String and a List of operands that may be of any class.

ExtensibleDatabase makes and keeps a reference to an OperationFactory. The OperationFactory includes a List of OperationHandlers. Different factories are available for different types of datastores.

When the ExtensibleDatabase is asked to doOperation it calls getHandler() on the OperationFactory. OperationFactory in turn calls getHandler() on the first OperationHandler.

getHandler() on OperationHandler returns either null or itself. It returns itself if the name of the operation and the format of the operands matches what it can deal with. If null is returned OperationFactory tries the next OperationHandler in the List. If the end of the list is reached and nothing has matched, an exception is thrown. This search for a handler is an example of the Chain of Responsibility pattern (GoF, p. 223).

When an OperationHandler is returned, it is passed to the ExtensibleDatabase which calls execute(List operands) on it.

Operataions may be added to the ExtensibleDatabase by creating an OperationHandler and adding it to the list on the OperationFactory.

Optimizations can be gained by improving the search for matching commands. For example, indexing based on command name and then searching by arguments would be very helpful.

Part 3

Resources:

GoF

Fluency: http://www.cs.indiana.edu/~rawlins/symphony/mvc2/mvc2-problem.html

Conversations of Chris Dent with Matt Ligget, Mary Clegg, Ailish Byrne, Nate Johnson

Problem:

Create a system for interfacing widget actions and events such that an interface designer can experiment with linking actions on one widget with visual results on another. Any actions can be linked to any results. Do this without requiring common interfaces or recompilation to extend the set of Widgets and actions.

Overview:

(Based on Fluency, see ref. above)

The solution to this problem lies in revising some of the wording. If we call the actions that occur on a source widget "events" and the results that occur on a target "actions" we are halfway there. This solution uses a modified Mediator pattern, with Observers and widget information holders called Guards.

For all the widgets available, a Guard is created. A Guard contains two maps that have information about the widget:

actions: All the actions that the widget can perform and the corresponding Actions
events: All the classes of events that the widget can fire and the corresponding WidgetListeners.

In this design, where state is not being considered to any great degree, the Guard can be a Singleton as the information it contains need not change.

Action classes exist which encapsulate the actions on destination widgets. These classes are Commands such as those found in the Command pattern.

WidgetListener classes exist which encapsulate the events on the source widgets. They listen for corresponding events on the source widget.

When a linkage between two widgets is required the Guards for each type of widget are created. The Guards create an instance of each the desired Widget. Each Guard is queried to get the relevant WidgetListener and Action.

A WidgetMediator is created that saves the pair. An instance of the Action is created and its target is set to the target Widget. An instance of the WidgetListener is created and is added as a listener to the source Widget. The WidgetMediator adds itself as a listener on the WidgetListener.

When the event on the source Widget fires, the WidgetListener hears it and alerts the WidgetMediator. The WidgetMediator looks in its Event Action map for an Action that corresponds with the class of WidgetListener it is hearing from. If one is found, which should happen, execute() is called on the Action.

execute() on the Action calls the proper action on the target Widget.

This implementation does not, at this point, concern itself with information exchange between source and target, for example text to put in a TextArea. As Events can be passed from the calling Widget, through the WidgetListener and to the Action, it should be possible somewhere in that chain to get the source Widget and retrieve relevant information.

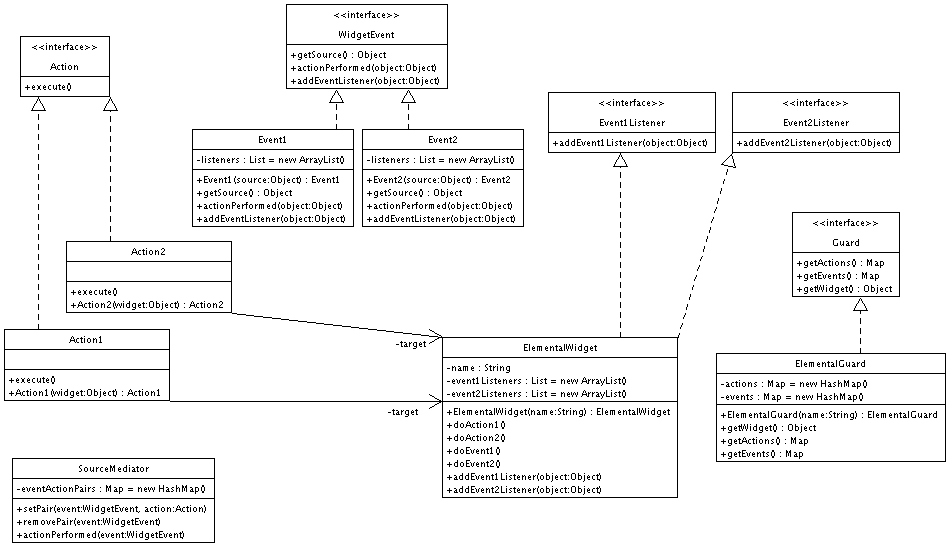

Interfaces:

WidgetGuard

Provides the interface for Guards. Defines getEvents(), getActions() and getWidget().

WidgetListener

Listens for events from Source Widgets and alerts the WidgetMediator (which is listening to it). Various implementations of this interface also implement EventListener sub-interfaces such as ActionListener and ItemListener so they can hear the correct events from a Widget.
Having WidgetListeners allows the WidgetMediator to listen for just one kind of event but still use the WidgetListener's class as an identifier in its action pair map.

WidgetMediator

Provides the interface for mediating between a source Widget and an Action that will cause an action on a target Widget. Defines setPair() and removePair() for managing the event action pairs.

Action

A Command that causes an action on a Widget. Defines setTarget(Widget widget) and execute().

Other Classes:

The Widgets

· Any of a variety of Widgets that we don't know much about.

· Their actions and events are recorded in a WidgetGuard.

Part 4

Resources:

Eric’s Presentation, Design-Patterns Lecture, September 2002.

Question:

Write a persistence layer for some application. This layer should allow saving of the current state of the program as well as allow layer clients to cause any persistable object to revert to a previously saved state. The persistence layer should be as transparent as possible to the application, that is, the application should work essentially as it did before it was made persistable, except that any part of it can now restore itself from previous state. To ensure that, persistable objects should not know anything about how their states are being saved and loaded, they must of course have some standard methods to produce a snapshot of their current state and to accept a state snapshot and restore themselves to that state. Further, based on the current state of the application, client objects of the persistence layer may need to save application objects to two or more databases (like switching which bucket a hose pours water into, or even hosing water into two buckets at once). For simplicity, your 'databases' need not be sophisticated; for instance, you could support writing to an XML file as well as a delimited flat file. The switching between these two 'databases', however, can happen at runtime. Further, more kinds of databases (example, Oracle) are bound to be needed for future releases and should be easy to add. Adding new databases should not affect the persistable objects' code in any way at all.

Overview:

(This solution is heavily based on Eric's solution, with some adjustments to deal with composite PersistableObjects and multiple datastores.)

One solution to this problem is to use a variety of design patterns: Mediator, Memento, AbstractFactory and Singleton. These are used to create a network of PersistableObjects. Each of these PersistableObjects uses Memento to save its state via a PersistenceMediator. The Mediator uses a PersistorFactory (an AbstractFactory) to create a collection of Persistors associated with a particular datastore. The datastore does the business of saving provided state to that database.

We make the following assumptions:

The types of PersistableObjects that will be saved are limited and any changes in that collection will be reflected in the code of the PersistanceMediator. Support for additional datastores is added at compile time (as we'll need new classes for the Persistors) but choice of which datastores are used for saving is made at runtime from the set of available options.

Process:

A client creates a collection of PersistableObjects. Later the client chooses to dump the state of the set of PersistableObjects to two datastores. A PersistableObject composed of all the PersistableObjects that should be saved is created.

A StringPersistanceMediator is created. The StringPersistanceMediator has a map of datastore names to classes that implement the AbstractFactory, for example "oracle" -> OraclePersistorFactory and "text" -> TextPersistorFactory. This map could be input from a configuration file.

The state in a PersistableObject has a particular format and destination in the datastore. The PersistorFactories create enough objects to save state for the various types of PersistableObject. These objects are created as Singletons.

The StringPersistanceMediator has methods that mediate between the Memento of a PersistableObject and the Persistor that can save state. In those methods, a List of Persistors, created when the Persistors are generated, is traversed and executeSave() is called on each one to pass state to the Persistors.

Once all the Persistors have been created, the PersistableObject composite, which contains all those that are to be saved, is asked to save(). As a Composite, it asks its children Components to save.

save() returns the database ID of the entry in the database (synchronization of IDs between multiple datastores is an interesting and solvable problem which we do not address here but in general IDs will need to be created prior to data being stored. In the sample code the simple expedient of a static integer is used to create Ids. Cleary this is not a good solution.). The Composite builds a string of IDs. These IDs are saved into the datastores.

The ID of the Composite becomes the key to recovering the state of the application and must be saved for later use when state is loaded by calling the load() method.

The load() method works in much the same way: When the client chooses to revert to a saved state, the StringPersistanceMediator is called with the proper datastore attributes (only one datastore should be chosen) and load() is called on Composite PersistableObject or one of the same Composition (order is important). load() is called on the Components contained in the Composite, in reverse order to ensure that any time-based dependencies are met.

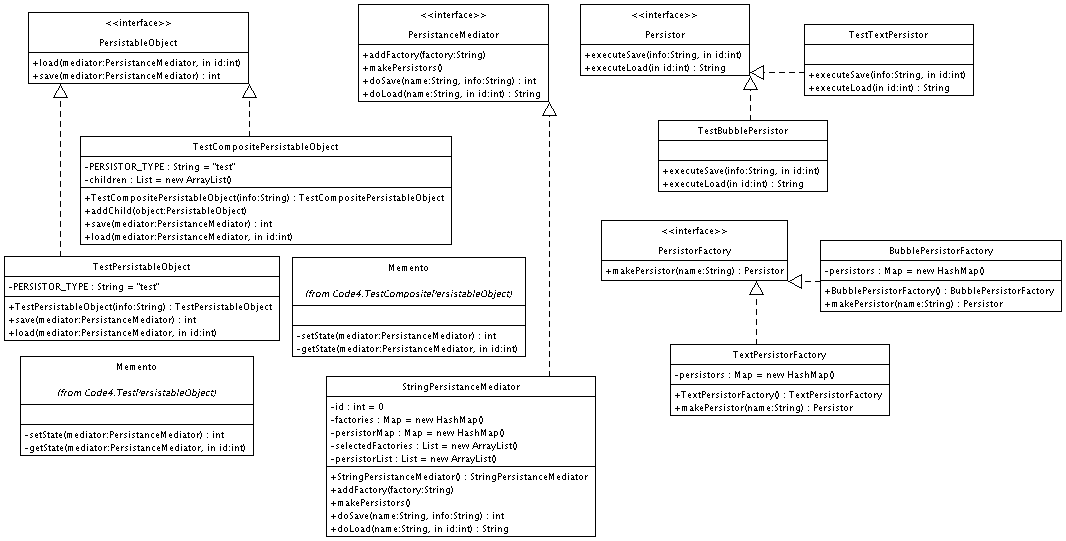

Interfaces and Classes:

PersistableObject

Provides the interface for all PersistableObjects. Defines load() and save() methods.

TestCompositePersistableObject

TestPersistableObject

Implement the PersistableObject interface.
Each has an inner class named Memento to save its state as required. Memento class defines private setState() and getState() method

PersistanceMediator

Interface for mediating between PersistableObjects and Persistors

StringPersistanceMediator

Class Implementing PersistanceMediator.
Defines addFactory(), makePersistors(), doSave() and doLoad() methods

Persistor

Provides interface for all Persistors
Defines executeSave() and executeLoad() methods.
TestBubblePersistor class and TestTextPersistor class implement this interface

PersistorFactory

Provides interface for all PersistorFactories
Define makePersistor() method
TextPersistorFactory and BubblePersistorFactory implememts this interface
